Product Features
Booster Pump
Booster Pump －Product Features
Booster Pump －Operating Condition
Feature
Quiet Operation.
Easy Installation.
Anti-cycling.
Dry-running protection.
Automatically starts and stops the pump based on demand.
Pump Construction
Horizontal multi-stage centrifugal pump, co-axial pump/motor design, impellers mounted on extended motor shaft. All parts in contact with the pumped liquid are made of stainless steel.
Motor
Nominal speed: 2900 / 3500 rpm
Frequency range: 50 / 60 Hz
Standard voltages: 220V/110V
Protection class: IP54
Insulation class: F.
Operating Condition
Ambient Temperature: Max. +40°C
Liquid: +0°C ~ +90°C
Operating Pressure: Max. 10 kg/cm²
Inlet Pressure: Max. 6 kg/cm²

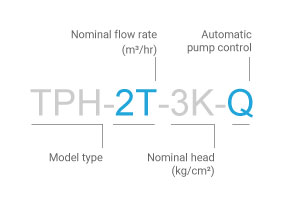

Model Code
TPH 2T , 50Hz
Compare Products
| Type |
| TPH2T3KQ |
| TPH2T4KQ |
| TPH2T5KQ |
| TPH2T6KQ |
| TPH4T4KQ |
| TPH4T5KQ |
| TPH T6KQ |

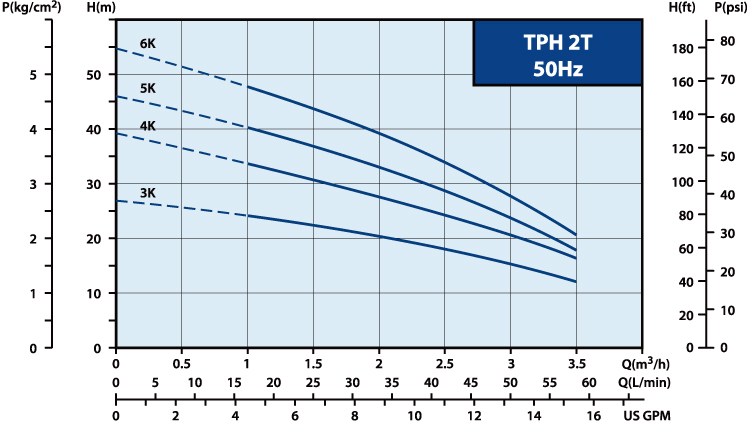

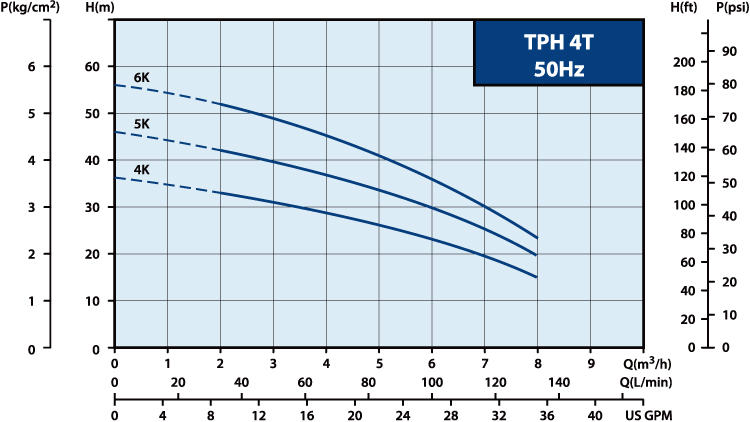

Booster Pump －Perflrmance Curve
TPH_Q Series
i.Instruction Manual
Instruction Manual
TPH Series Multistage Centrifugal Pump
Updated on 2024/03/28
1.38MB
Thank you TPH Series products !
